How to make a video game with Arduino and 16x2 LCD display

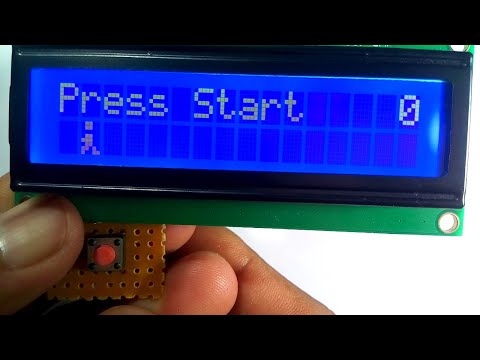

in this article, we are going to make a simple running game or dino game with an Arduino and 16x2 LCD display,

Requirement

1) Arduino Uno ( any type of board)

2) 16x2 LCD Display

3) Push-button / switch

4) 9v battery or dc supply

5) connectors

6) programming cables,

if you have any doubt regarding this project watch this video or you can ask me with comments

circuit diagram

Arduino code

#include <LiquidCrystal.h>

#define PIN_BUTTON 2

#define PIN_AUTOPLAY 1

#define PIN_READWRITE 10

#define PIN_CONTRAST 7

#define SPRITE_RUN1 1

#define SPRITE_RUN2 2

#define SPRITE_JUMP 3

#define SPRITE_JUMP_UPPER '.' // Use the '.' character for the head

#define SPRITE_JUMP_LOWER 4

#define SPRITE_TERRAIN_EMPTY ' ' // User the ' ' character

#define SPRITE_TERRAIN_SOLID 5

#define SPRITE_TERRAIN_SOLID_RIGHT 6

#define SPRITE_TERRAIN_SOLID_LEFT 7

#define HERO_HORIZONTAL_POSITION 1 // Horizontal position of hero on screen

#define TERRAIN_WIDTH 16

#define TERRAIN_EMPTY 0

#define TERRAIN_LOWER_BLOCK 1

#define TERRAIN_UPPER_BLOCK 2

#define HERO_POSITION_OFF 0 // Hero is invisible

#define HERO_POSITION_RUN_LOWER_1 1 // Hero is running on lower row (pose 1)

#define HERO_POSITION_RUN_LOWER_2 2 // (pose 2)

#define HERO_POSITION_JUMP_1 3 // Starting a jump

#define HERO_POSITION_JUMP_2 4 // Half-way up

#define HERO_POSITION_JUMP_3 5 // Jump is on upper row

#define HERO_POSITION_JUMP_4 6 // Jump is on upper row

#define HERO_POSITION_JUMP_5 7 // Jump is on upper row

#define HERO_POSITION_JUMP_6 8 // Jump is on upper row

#define HERO_POSITION_JUMP_7 9 // Half-way down

#define HERO_POSITION_JUMP_8 10 // About to land

#define HERO_POSITION_RUN_UPPER_1 11 // Hero is running on upper row (pose 1)

#define HERO_POSITION_RUN_UPPER_2 12 // (pose 2)

LiquidCrystal lcd(11, 9, 3, 4, 5, 6);

static char terrainUpper[TERRAIN_WIDTH + 1];

static char terrainLower[TERRAIN_WIDTH + 1];

static bool buttonPushed = false;

void initializeGraphics(){

static byte graphics[] = {

// Run position 1

B01100,

B00000,

B01110,

B11100,

B01100,

B11010,

B10011,

// Run position 2

B01100,

B00000,

B01100,

B01110,

// Jump

B01100,

B00000,

B11110,

B01101,

B11111,

B10000,

B00000,

// Jump lower

B11110,

B01101,

B11111,

B10000,

B00000,

// Ground

B11111,

// Ground right

B00011,

// Ground left

B11000,

};

int i;

// Skip using character 0, this allows lcd.print() to be used to

// quickly draw multiple characters

for (i = 0; i < 7; ++i) {

lcd.createChar(i + 1, &graphics[i * 8]);

}

for (i = 0; i < TERRAIN_WIDTH; ++i) {

terrainUpper[i] = SPRITE_TERRAIN_EMPTY;

terrainLower[i] = SPRITE_TERRAIN_EMPTY;

}

// Slide the terrain to the left in half-character increments

void advanceTerrain(char* terrain, byte newTerrain){

for (int i = 0; i < TERRAIN_WIDTH; ++i) {

char current = terrain[i];

char next = (i == TERRAIN_WIDTH-1) ? newTerrain : terrain[i+1];

switch (current){

case SPRITE_TERRAIN_EMPTY:

terrain[i] = (next == SPRITE_TERRAIN_SOLID) ? SPRITE_TERRAIN_SOLID_RIGHT : SPRITE_TERRAIN_EMPTY;

break;

case SPRITE_TERRAIN_SOLID:

terrain[i] = (next == SPRITE_TERRAIN_EMPTY) ? SPRITE_TERRAIN_SOLID_LEFT : SPRITE_TERRAIN_SOLID;

break;

case SPRITE_TERRAIN_SOLID_RIGHT:

terrain[i] = SPRITE_TERRAIN_SOLID;

break;

case SPRITE_TERRAIN_SOLID_LEFT:

terrain[i] = SPRITE_TERRAIN_EMPTY;

break;

}

bool drawHero(byte position, char* terrainUpper, char* terrainLower, unsigned int score) {

bool collide = false;

char upperSave = terrainUpper[HERO_HORIZONTAL_POSITION];

char lowerSave = terrainLower[HERO_HORIZONTAL_POSITION];

byte upper, lower;

switch (position) {

case HERO_POSITION_OFF:

upper = lower = SPRITE_TERRAIN_EMPTY;

break;

case HERO_POSITION_RUN_LOWER_1:

upper = SPRITE_TERRAIN_EMPTY;

lower = SPRITE_RUN1;

break;

case HERO_POSITION_RUN_LOWER_2:

upper = SPRITE_TERRAIN_EMPTY;

lower = SPRITE_RUN2;

break;

case HERO_POSITION_JUMP_1:

case HERO_POSITION_JUMP_8:

upper = SPRITE_TERRAIN_EMPTY;

lower = SPRITE_JUMP;

break;

case HERO_POSITION_JUMP_2:

case HERO_POSITION_JUMP_7:

upper = SPRITE_JUMP_UPPER;

lower = SPRITE_JUMP_LOWER;

break;

case HERO_POSITION_JUMP_3:

case HERO_POSITION_JUMP_4:

case HERO_POSITION_JUMP_5:

case HERO_POSITION_JUMP_6:

upper = SPRITE_JUMP;

lower = SPRITE_TERRAIN_EMPTY;

break;

case HERO_POSITION_RUN_UPPER_1:

upper = SPRITE_RUN1;

lower = SPRITE_TERRAIN_EMPTY;

break;

case HERO_POSITION_RUN_UPPER_2:

upper = SPRITE_RUN2;

lower = SPRITE_TERRAIN_EMPTY;

break;

}

if (upper != ' ') {

terrainUpper[HERO_HORIZONTAL_POSITION] = upper;

collide = (upperSave == SPRITE_TERRAIN_EMPTY) ? false : true;

}

if (lower != ' ') {

terrainLower[HERO_HORIZONTAL_POSITION] = lower;

collide |= (lowerSave == SPRITE_TERRAIN_EMPTY) ? false : true;

}

byte digits = (score > 9999) ? 5 : (score > 999) ? 4 : (score > 99) ? 3 : (score > 9) ? 2 : 1;

// Draw the scene

terrainUpper[TERRAIN_WIDTH] = '\0';

terrainLower[TERRAIN_WIDTH] = '\0';

char temp = terrainUpper[16-digits];

terrainUpper[16-digits] = '\0';

lcd.setCursor(0,0);

lcd.print(terrainUpper);

terrainUpper[16-digits] = temp;

lcd.setCursor(0,1);

lcd.print(terrainLower);

lcd.setCursor(16 - digits,0);

lcd.print(score);

terrainUpper[HERO_HORIZONTAL_POSITION] = upperSave;

terrainLower[HERO_HORIZONTAL_POSITION] = lowerSave;

return collide;

}

// Handle the button push as an interrupt

void buttonPush() {

buttonPushed = true;

}

void setup(){

pinMode(PIN_READWRITE, OUTPUT);

digitalWrite(PIN_READWRITE, LOW);

pinMode(PIN_CONTRAST, OUTPUT);

digitalWrite(PIN_CONTRAST, LOW);

pinMode(PIN_BUTTON, INPUT);

digitalWrite(PIN_BUTTON, HIGH);

pinMode(PIN_AUTOPLAY, OUTPUT);

digitalWrite(PIN_AUTOPLAY, HIGH);

// Digital pin 2 maps to interrupt 0

attachInterrupt(0/*PIN_BUTTON*/, buttonPush, FALLING);

initializeGraphics();

lcd.begin(16, 2);

}

void loop(){

static byte heroPos = HERO_POSITION_RUN_LOWER_1;

static byte newTerrainType = TERRAIN_EMPTY;

static byte newTerrainDuration = 1;

static bool playing = false;

static bool blink = false;

static unsigned int distance = 0;

if (!playing) {

drawHero((blink) ? HERO_POSITION_OFF : heroPos, terrainUpper, terrainLower, distance >> 3);

if (blink) {

lcd.setCursor(0,0);

lcd.print("Press Start");

}

delay(250);

blink = !blink;

if (buttonPushed) {

initializeGraphics();

heroPos = HERO_POSITION_RUN_LOWER_1;

playing = true;

buttonPushed = false;

distance = 0;

}

return;

}

// Shift the terrain to the left

advanceTerrain(terrainLower, newTerrainType == TERRAIN_LOWER_BLOCK ? SPRITE_TERRAIN_SOLID : SPRITE_TERRAIN_EMPTY);

advanceTerrain(terrainUpper, newTerrainType == TERRAIN_UPPER_BLOCK ? SPRITE_TERRAIN_SOLID : SPRITE_TERRAIN_EMPTY);

// Make new terrain to enter on the right

if (--newTerrainDuration == 0) {

if (newTerrainType == TERRAIN_EMPTY) {

newTerrainType = (random(3) == 0) ? TERRAIN_UPPER_BLOCK : TERRAIN_LOWER_BLOCK;

newTerrainDuration = 2 + random(10);

} else {

newTerrainType = TERRAIN_EMPTY;

newTerrainDuration = 10 + random(10);

}

if (buttonPushed) {

if (heroPos <= HERO_POSITION_RUN_LOWER_2) heroPos = HERO_POSITION_JUMP_1;

buttonPushed = false;

}

if (drawHero(heroPos, terrainUpper, terrainLower, distance >> 3)) {

playing = false; // The hero collided with something. Too bad.

} else {

if (heroPos == HERO_POSITION_RUN_LOWER_2 || heroPos == HERO_POSITION_JUMP_8) {

heroPos = HERO_POSITION_RUN_LOWER_1;

} else if ((heroPos >= HERO_POSITION_JUMP_3 && heroPos <= HERO_POSITION_JUMP_5) && terrainLower[HERO_HORIZONTAL_POSITION] != SPRITE_TERRAIN_EMPTY) {

heroPos = HERO_POSITION_RUN_UPPER_1;

} else if (heroPos >= HERO_POSITION_RUN_UPPER_1 && terrainLower[HERO_HORIZONTAL_POSITION] == SPRITE_TERRAIN_EMPTY) {

heroPos = HERO_POSITION_JUMP_5;

} else if (heroPos == HERO_POSITION_RUN_UPPER_2) {

heroPos = HERO_POSITION_RUN_UPPER_1;

} else {

++heroPos;

}

++distance;

digitalWrite(PIN_AUTOPLAY, terrainLower[HERO_HORIZONTAL_POSITION + 2] == SPRITE_TERRAIN_EMPTY ? HIGH : LOW);

}

delay(100);

}
